| R32 pool heat pump | |||||||||
| Model | MSHP-007C1 | MSHP-010C1 | MSHP-013C1 | MSHP-017C1 | MSHP-021C1 | MSHP-028C1 | MSHP-035C1 | MSHP-028C3 | MSHP-035C3 |
| Rated Voltage / Frequency (V-Hz) | 220-240V~/(50)60Hz | 380-415V/3N~(50)60Hz | |||||||
| Weight / GWP (kg) | R32/0.35/675 | R32/0.43/675 | R32/0.72/675 | R32/0.79/675 | R32/0.85/675 | R32/1.15/675 | R32/1.3/675 | R32/1.15/675 | R32/1.15/675 |
| Heating capacity at air 26℃, humidity 80%, water 26℃ in, 28℃ out | |||||||||
| Capacity (kW) | 1.75~7.62 | 2.34~10.21 | 3.02~13.12 | 3.79~16.52 | 4.83~21.01 | 6.49~28.23 | 8.94~35.0 | 6.53~28.42 | 8.97~35.1 |
| Power Input (kW) | 0.13~1.10 | 0.17~1.47 | 0.22~1.88 | 0.28~2.38 | 0.36~3.03 | 0.48~4.06 | 0.56~5.16 | 0.48~4.08 | 0.56~5.16 |
| Input current (A) | 0.59~5 | 0.77~6.69 | 1~8.55 | 1.28~10.82 | 1.64~13.77 | 2.18~18.45 | 2.55~23.45 | 0.86~7.28 | 1~9.22 |
| COP | 6.91~13.52 | 6.93~13.54 | 6.98~13.61 | 6.95~13.57 | 6.94~13.56 | 6.95~13.57 | 6.97~15.98 | 6.96~13.59 | 6.97~16.01 |
| Heating capacity at air 15℃, humidity 70%, water 26℃ in, 28℃ out | |||||||||
| Capacity (kW) | 1.33~5.74 | 1.76~7.62 | 2.23~9.73 | 2.87~12.61 | 3.59~15.74 | 4.77~20.68 | 6.4~25.5 | 4.79~20 | 6.4~25.5 |
| Power Input (kW) | 0.18~1.16 | 0.23~1.54 | 0.29~1.95 | 0.38~2.54 | 0.47~3.18 | 0.63~4.17 | 0.84~5.2 | 0.63~4.18 | 0.84~5.2 |
| Input current (A) | 0.82~5.27 | 1.05~7 | 1.32~8.86 | 1.73~11.55 | 2.14~14.45 | 2.86~18.95 | 3.82~23.64 | 1.12~7.46 | 1.5~9.3 |
| COP | 4.94~7.53 | 4.95~7.58 | 4.98~7.63 | 4.96~7.61 | 4.95~7.57 | 4.96~7.57 | 4.97~7.61 | 4.97~7.59 | 4.97~7.61 |
| Cooling capacity at air 35℃, water 29℃ in, 27℃ out | |||||||||
| Capacity (kW) | 1.12~4.06 | 1.38~5.36 | 1.82~6.88 | 2.24~8.86 | 2.86~11.07 | 3.64~14.52 | 4.9~19.3 | 3.66~14.58 | 4.9~19.3 |
| Power Input (kW) | 0.17~1.15 | 0.21~1.51 | 0.27~1.88 | 0.34~2.47 | 0.44~3.11 | 0.55~4.04 | 0.73~5.08 | 0.55~4.04 | 0.73~5.08 |
| Input current (A) | 0.77~5.23 | 0.95~6.86 | 1.23~8.55 | 1.55~11.23 | 2.00~14.14 | 2.50~18.36 | 3.32~23.09 | 0.98~7.21 | 1.3~9.08 |
| EER | 3.52~6.48 | 3.54~6.51 | 3.65~6.62 | 3.58~6.58 | 3.56~6.57 | 3.59~6.61 | 3.8~6.7 | 3.61~6.63 | 3.8~6.7 |
| Net Weight (kg) | 42 | 43 | 53 | 54 | 58 | 86 | 98 | 88 | 98 |
| Net Dimensions (L*W*H) (mm) | 864*349*592 | 925*364*642 | 1084*399*737 | ||||||
| Package Dimensions (L*W*H) (mm) | 930*440*640 | 990*435*760 | 1146*460*862 | ||||||
| Water Proof Level | IPX4 | ||||||||
| Heat Exchanger | Titanium | ||||||||
| Compressor | Mitsubishi | ||||||||
| Casing Material | Aluminum+ABS | ||||||||

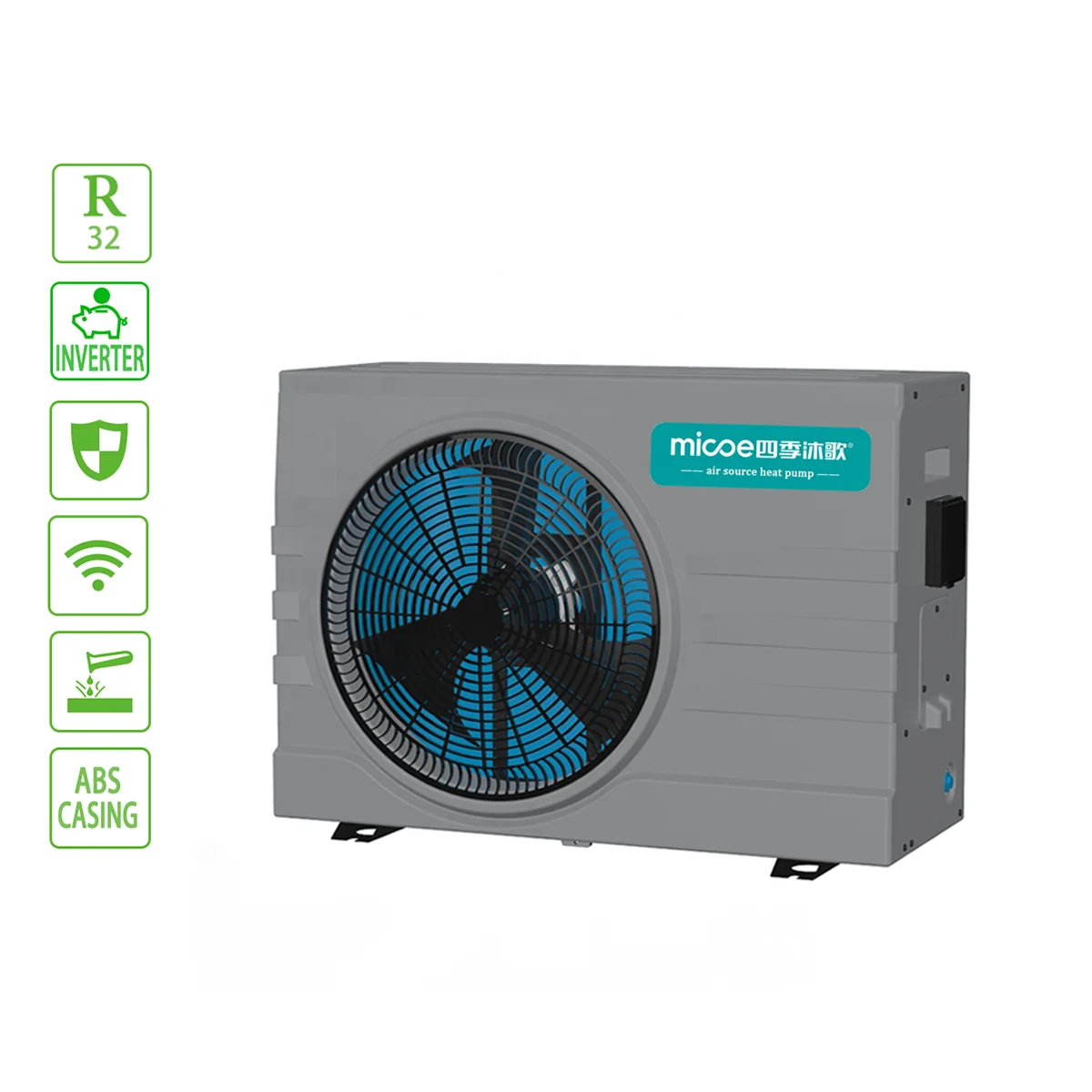

Presenting a new enhancement towards the Micoe household - the New Design R32 Full Inverter WIFI Control DC Sky Source Swimming Pool Heat Pump to Europe. Developed towards carry convenience as
