Features
●R410A refrigerant, environmental friendly.
●Titanium heat ex-changer, corrosion resistance.
●High pressure protection.
●Defrost automatically.
●With water flow switch.
●MODBUS communication.
●Full automatically operation.

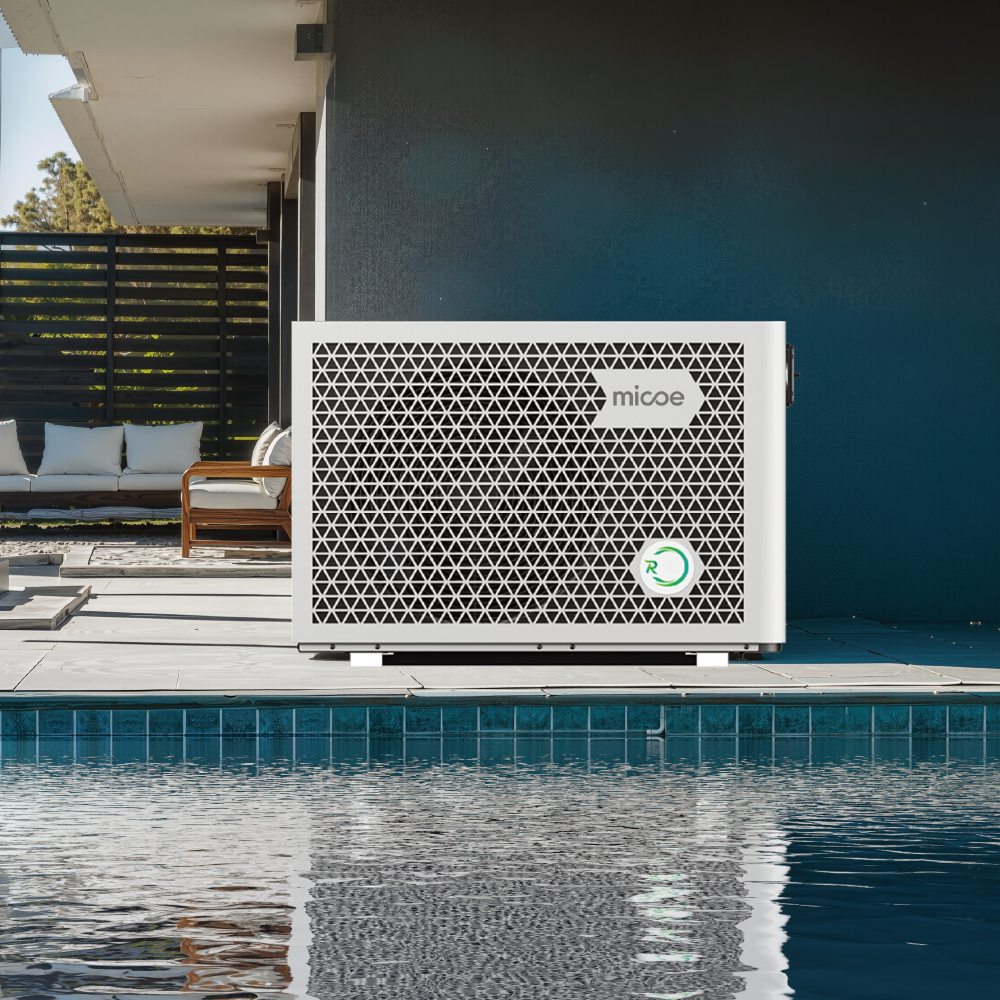

●The heat pump can heat and cool the swimming pool.
Model No. | MSHP-005A1 | MSHP-006A1 | MSHP-008A1 | MSHP-012A1 | MSHP-016A1 | MSHP-030A1 |
Power Supply | 220V/1/50Hz | 380V/3/50Hz | ||||
Heating Capacity at Air 27℃/24℃, Water 27℃ in, 29℃ out | ||||||
Heating Capacity(kW) | 5.0 | 7.2 | 9.5 | 13.0 | 16.1 | 25.0 |
Power Input(kW) | 0.86 | 1.24 | 1.62 | 2.25 | 2.75 | 4.22 |
COP | 5.84 | 5.81 | 5.88 | 5.79 | 5.85 | 5.92 |
Heating Capacity at Air 15℃/12℃, Water 26℃ in, 28℃ out | ||||||
Heating Capacity(kW) | 3.6 | 5.5 | 7.0 | 10.0 | 12.5 | 18.0 |
Power Input(kW) | 0.73 | 1.12 | 1.41 | 2.05 | 2.54 | 3.61 |
COP | 4.94 | 4.92 | 4.95 | 4.88 | 4.93 | 4.98 |
Cooling Capacity at Air 35℃/24℃, Water 29℃ in, 27℃ out | ||||||
Cooling Capacity(kW) | 3.2 | 5.1 | 6.5 | 9.2 | 11.3 | 16.2 |
Power Input(kW) | 0.94 | 1.51 | 1.90 | 2.69 | 3.36 | 4.78 |
EER | 3.41 | 3.38 | 3.43 | 3.42 | 3.36 | 3.39 |
Max Power Input(kW) | 1.16 | 1.68 | 2.24 | 3.24 | 3.72 | 5.71 |
Max Current(A) | 5.8 | 8.5 | 11.3 | 16.4 | 18.8 | 10.2 |
Refrigerant | R410a | R410a | R410a | R410a | R410a | R410a |
Heat Exchanger | Titanium | |||||
Air Flow Direction | Horizotal | Horizotal | Horizotal | Horizotal | Horizotal | Horizotal |
Water Flow Volume(m3/h) | 2.0 | 3.0 | 3.5 | 5.5 | 6.0 | 8.0 |
Net Dimensions(L*W*H)(mm) | 936×385×550 | 1011×420×614 | 986×420×798 | 1000×375×1320 | ||
Package Dimensions(L*W*H)(mm) | 1055×460×620 | 1110×480×670 | 1115×490×930 | 1070×445×1440 | ||
Working temperature range(℃) | -15~43 | |||||
Noise(dB) | 48 | 48 | 50 | 52 | 52 | 54 |
Net Weight(kg) | 42 | 46 | 58 | 72 | 85 | 135 |
Gross Weight(kg) | 48 | 52 | 65 | 87 | 100 | 153 |
Water connection(mm) | 50 | 50 | 50 | 50 | 50 | 50 |
Loading Capacity(20GP/40HC) | 100/220 | 100/220 | 100/220 | 48/96 | 48/96 | 48/96 |
