Selling point

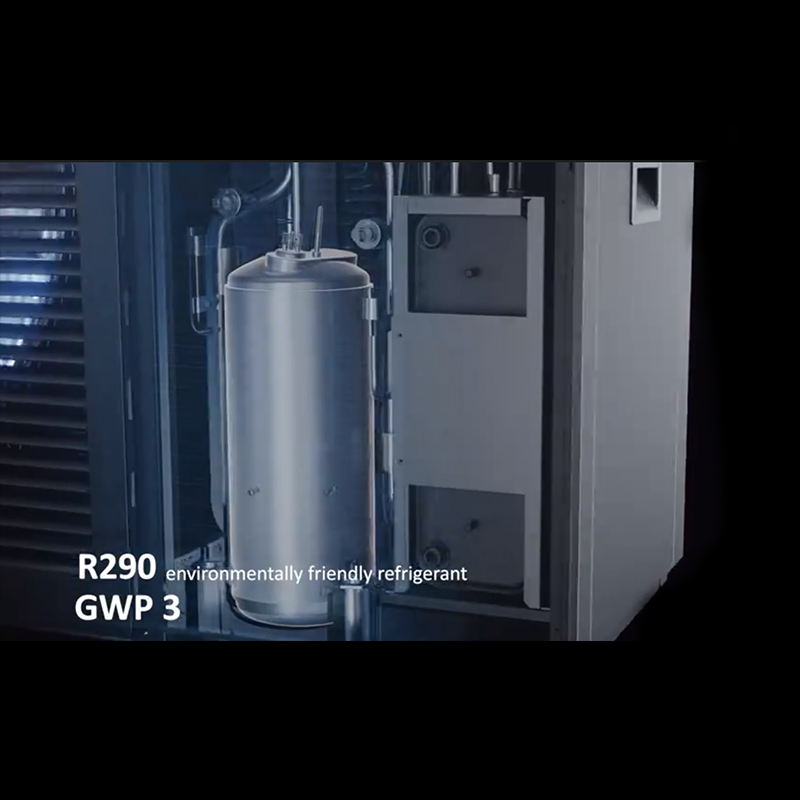

| Environmentally friendly | R290 green refrigerant (GWP=3) | ||||||||
| Energy efficiency: A+++ | Can significantly reduce energy consumption and save users a lot of money on their electricity bills | ||||||||
| Multiple functions | Provides heating, cooling, and domestic hot water, one stop solution | ||||||||
| Stable operation at -25℃ | Full DC inverter compressor, stable operation at -25℃. With intelligent defrost function | ||||||||
| Low noise fans | Plastic fans with glass fiber, high intensity and low noise | ||||||||
| Dual zone temperature | Dual zone temperature design, can set you living room floor heating at 35℃，and other rooms radiator at 55℃ | ||||||||
| Water outlet up to 75℃ | High temperature water outlet, suitable for different heating terminals | ||||||||
Features
Authentication

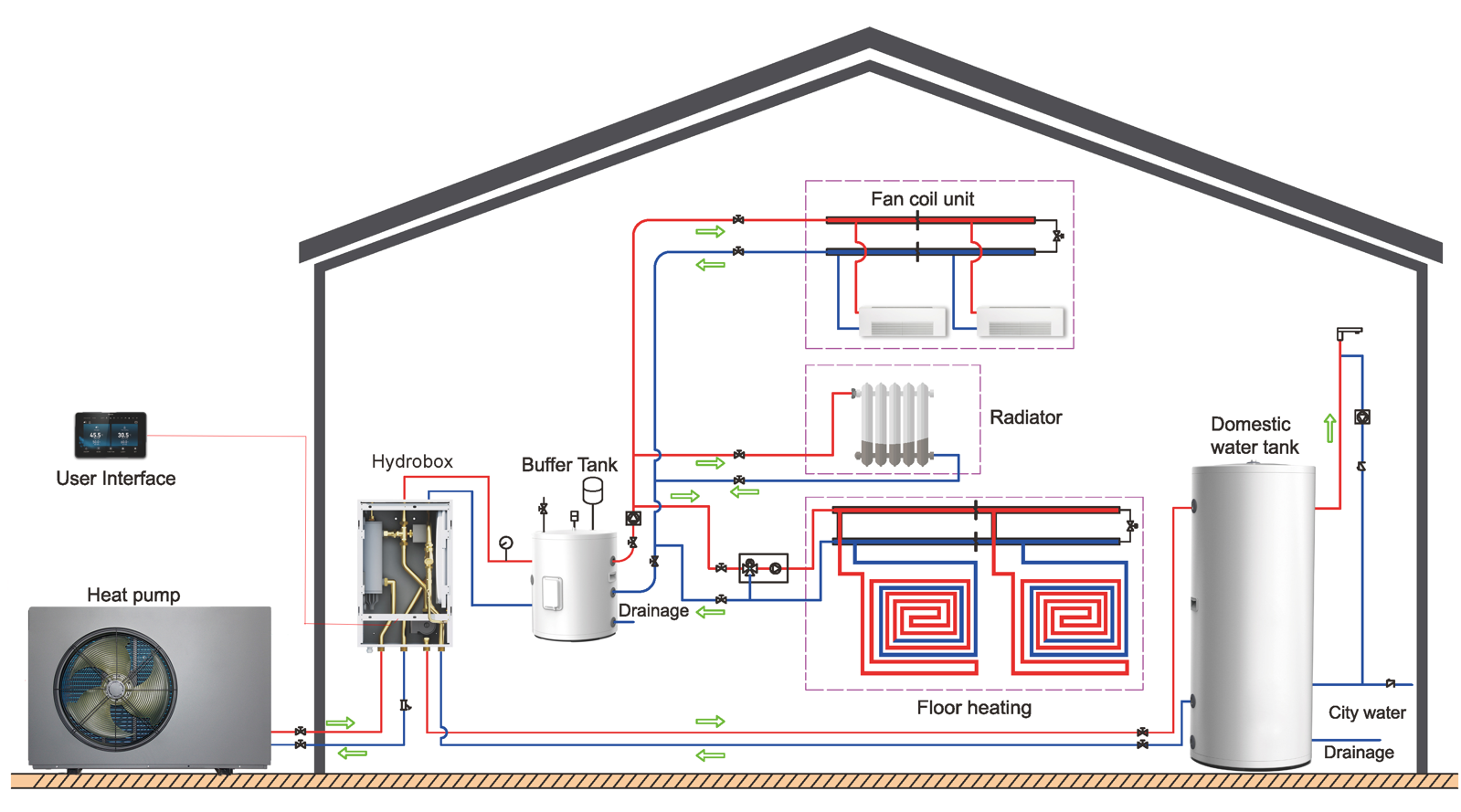

Usage scenario
Description

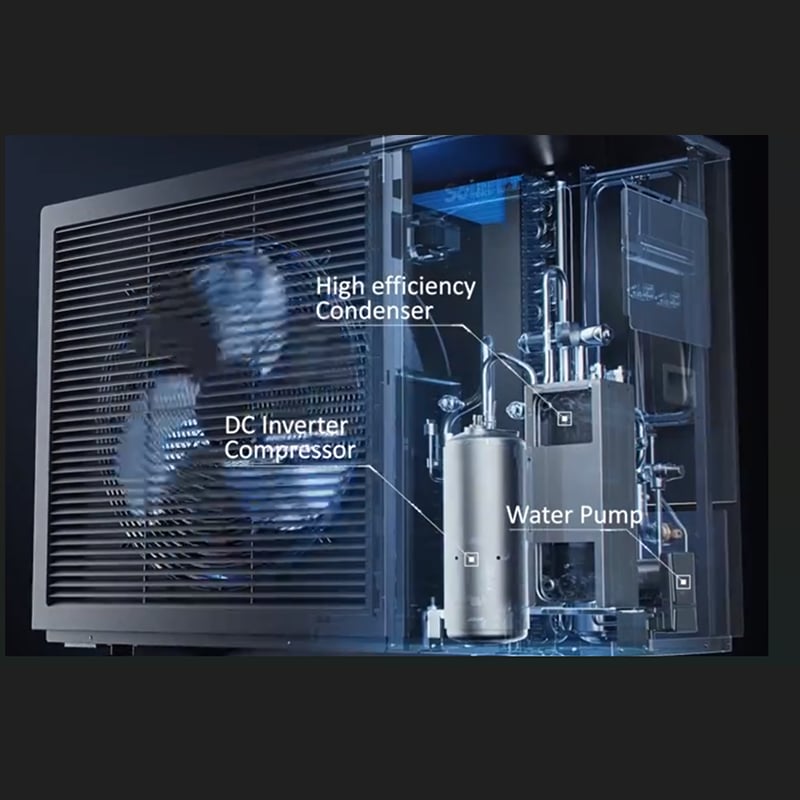

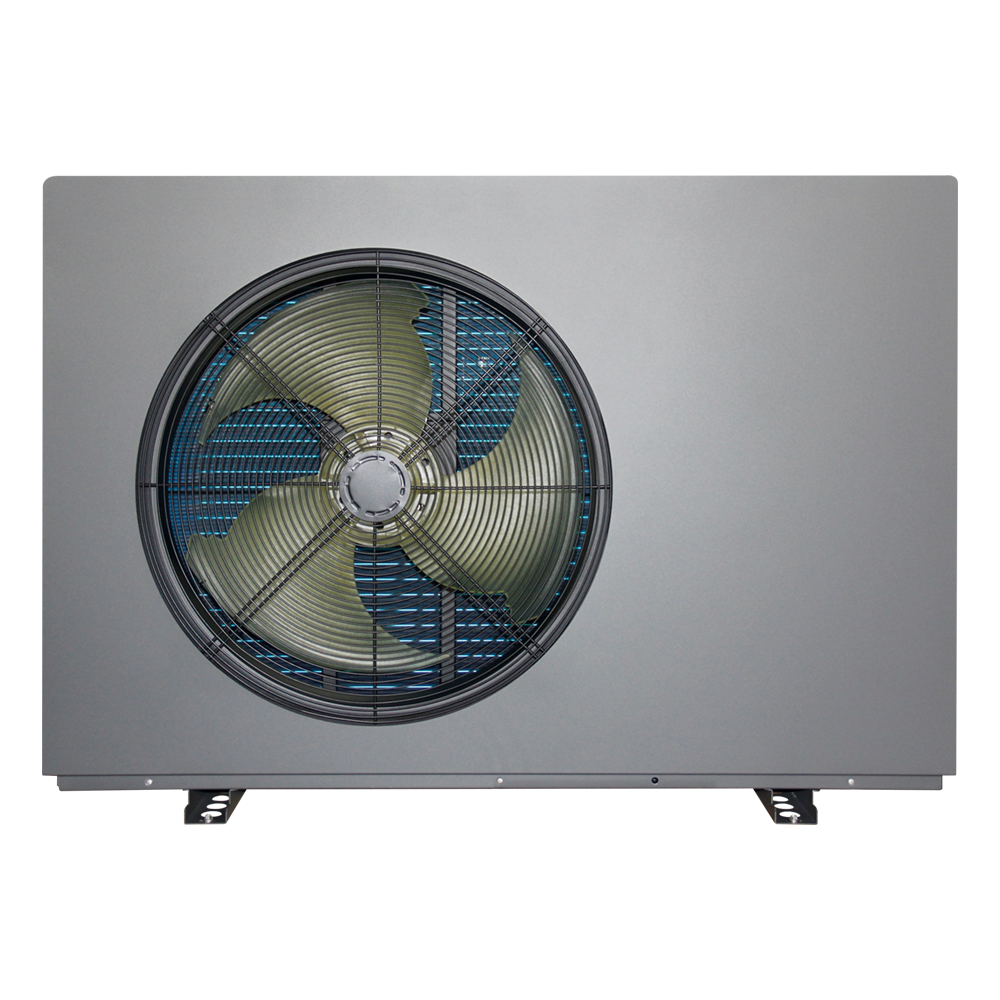

MICOE R290 heat pumps adopt eco-friendly refrigerant and DC Inverter compressor, energy savings and higher efficiency. One heat pump can achieve heating/cooling and DHW demand at the same time, and reduce energy consumption by 30% to 50% over a single winter, leading to substantial cost savings for users. 4/5 inch TFT controller for option, support wifi remote control and Modbus RS485 remote communication too, easy to operate and monitor. Micoe R290 heat pumps come with dual temperature zone function, this advanced feature allows you to independently adjust the temperature settings for different areas of your home, ensuring optimal comfort and energy efficiency. Maximum hot water outlet can reach to 75℃，can be used for different heating ends like floor heating, radiators and both. Micoe heat pumps can be integrated into the smart energy grids of the future to help provide the low-cost heating systems required to meet carbon reduction
targets.All heat pumps and water heaters in the European market are continuously tested by various certification schemes.
Selling point
| Environmentally friendly | R290 green refrigerant (GWP=3) | ||||||||
| Energy efficiency: A+++ | Can significantly reduce energy consumption and save users a lot of money on their electricity bills | ||||||||
| Multiple functions | Provides heating, cooling, and domestic hot water, one stop solution | ||||||||
| Stable operation at -25℃ | Full DC inverter compressor, stable operation at -25℃. With intelligent defrost function | ||||||||
| Low noise fans | Plastic fans with glass fiber, high intensity and low noise | ||||||||
| Dual zone temperature | Dual zone temperature design, can set you living room floor heating at 35℃，and other rooms radiator at 55℃ | ||||||||
| Water outlet up to 75℃ | High temperature water outlet, suitable for different heating terminals | ||||||||
Parameter list
| A+++ R290 Multifunctional Heat Pump Data Sheet | |||||||
| Model： | UNIT | MMHP9D1 | MMHP15D1 | MMHP15D3 | MMHP22D1 | MMHP22D3 | |
| Rated/MAX heating capacity at (A7/6℃,W30/35℃) | kw | 7.68 KW | 12.57 KW | 12.57 KW | 19.01 KW | 19.01 KW | |
| Power Supply | V/Ph/Hz | 220~240/1/50~60hz | 220~240/1/50~60hz | 380~415/3/50~60hz | 220~240/1/50~60hz | 380~415/3/50~60hz | |
| Nominal Heating (Max) (A7/6℃,W30/35℃) | Heating Capacity | kW | 2.92-9.10 | 4.30-15.20 | 4.30-15.20 | 7.24-21.9 | 7.24-21.9 |
| Power Input | kW | 0.61-2.11 | 0.87-3.73 | 0.87-3.73 | 1.5-5.88 | 1.5~6.8 | |
| COP | W/W | 4.31-5.66 | 4.07-5.57 | 4.07-5.57 | 3.82-5.59 | 3.24~5.05 | |
| Nominal Heating (Max) (A7/6℃,W47/55℃) | Heating Capacity | kW | 2.99-8.16 | 4.25-14.55 | 4.25-14.55 | 6.36~19.45 | 7.0~18.9 |
| Power Input | kW | 1.03-2.92 | 1.45-4.28 | 1.45-4.28 | 2.15~6.85 | 2.15~7.35 | |
| COP | W/W | 2.79-3.46 | 2.83-3.45 | 2.83-3.45 | 2.84~3.57 | 2.56~3.18 | |
| Nominal Cooling (Max) (A35/24℃,W12/7℃) | Cooling Capacity | kW | 1.38~5.70 | 3.65-11.04 | 3.65-11.04 | 4.55~17.2 | 4.5~17.7 |
| Power Input | kW | 0.67-2.44 | 1.12-3.97 | 1.12-3.97 | 1.80~7.30 | 1.80~7.30 | |
| EER | W/W | 2.47-3.35 | 2.45~3.30 | 2.45-3.30 | 2.42~3.27 | 2.42~3.27 | |
| ERP Level（Outlet water temp. at 35℃） | / | A+++ | A+++ | A+++ | A+++ | A+++ | |
| ERP Level（Outlet water temp. at 55℃） | / | A++ | A++ | A++ | A++ | A++ | |
| SCOP（Outlet water temp. at 35℃） | / | 4.83 | 4.77 | 4.85 | 4.81 | 4.81 | |
| SCOP（Outlet water temp. at 55℃） | / | 3.71 | 3.77 | 3.84 | 3.72 | 3.72 | |
| MAX. input power | kW | 3.50 | 5.40 | 5.85 | 7.50 | 10.50 | |
| MAX. input current | A | 15.00 | 25.00 | 10.00 | 35.00 | 17.00 | |
| Rated water flow | m3/h | 1.00 | 2.06 | 2.06 | 3.10 | 3.10 | |
| Fan motor type | / | DC inverter | |||||
| Compressor | / | Highly / DC inverter / Rotary / EVI | |||||
| Circulating pump | / | SHIMGE / Inverter type / Built-in | |||||
| IP Class | / | IPX4 | |||||
| Refrigerant/Weight/GWP | R290/0.55/3 | R290/1.05/3 | R290/1.05/3 | R290/1.4/3 | R290/1.4/3 | ||
| Sound pressure at 1m distance | dB(A) | 46 | 53 | 54 | 56 | 56 | |
| Sound pressure in night mode | dB(A) | 30 | 33 | 33 | 35 | 35 | |
| Max outlet water temperature | °C | 75 | 75 | 75 | 75 | 75 | |
| Water piping connections | / | DN 25 (1") | DN 25 (1") | DN 25 (1") | DN 32 (1-1/4") | DN 32 (1-1/4") | |
| Pressure drop at rating water flow | kPa | 20 | 20 | 20 | 55 | 55 | |
| Operating temperature range (Heating mode) | °C | -25~45 | |||||
| Operating temperature range (Cooing mode) | °C | 16~45 | |||||
| Unpacked Dimensions ( L×D×H ) | mm | 1187×418×805 | 1287×448×904 | 1287×448×904 | 1187×488×1456 | 1187×488×1456 | |
| Packed Dimensions ( L×D×H ) | mm | 1217×470×950 | 1320×495×1050 | 1320×495×1050 | 1217×538×1580 | 1217×538×1580 | |
| Weight | kg | 110/135 | 134/149 | 134/149 | 195/210 | 195/210 | |
